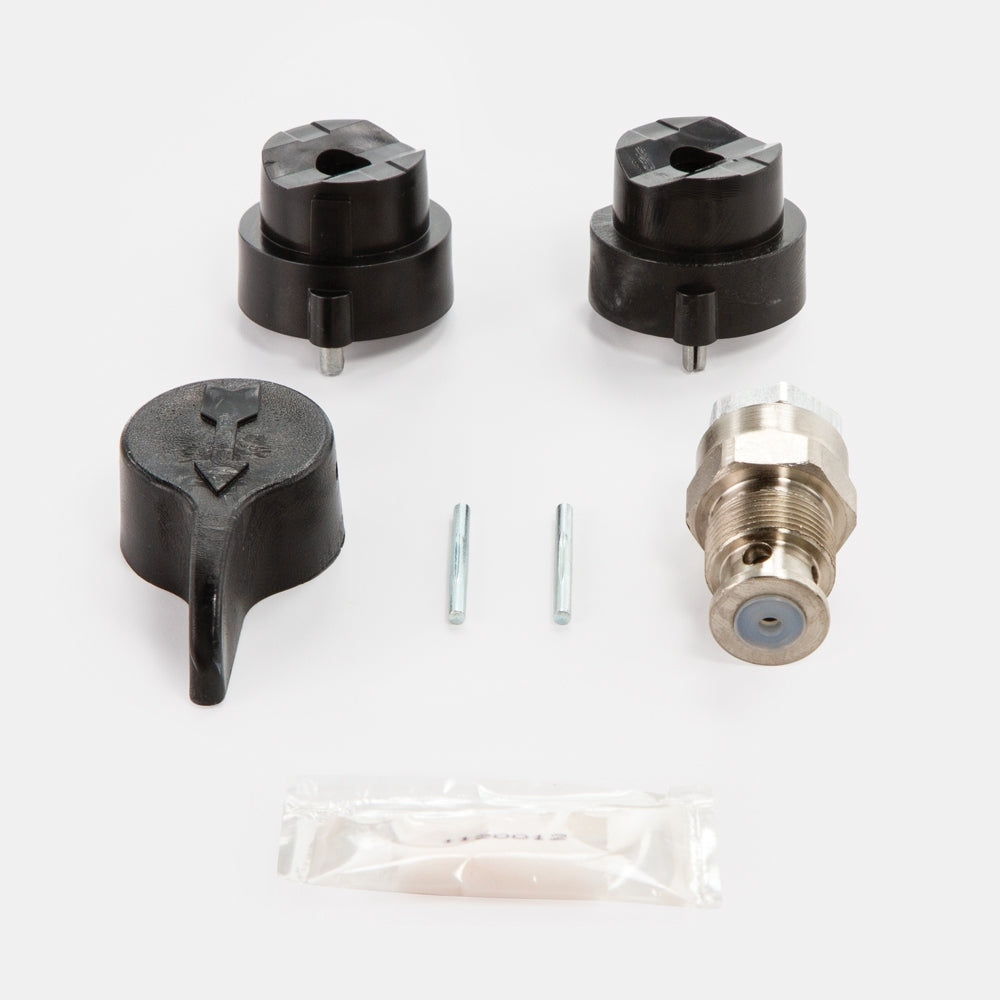

The GRACO 235014 Spray Prime/Drain Valve Kit is a genuine OEM replacement part designed for use in GRACO airless paint sprayers. It is typically constructed from durable materials suitable for paint and solvent exposure. The kit is intended to replace worn or damaged drain valves, ensuring proper priming, draining, and switching between spray and prime modes within compatible GRACO equipment.

Key Features:

• Prime/Drain Valve Kit
• 235014
• ProX17 Stand, ProX17 Cart, ProX19 Stand, ProX19 Cart, ProX21 Stand, ProX21 Cart; also compatible with other GRACO airless sprayers including models with part numbers: 120733, 120777, 287003, 162453, 224807, 111600, 187625, 235198, 239914, 245103
• Ease of maintenance (replaceable kit)
• Reliability (OEM part)
• Duty cycle: suitable for regular use in professional spray equipment

Applications:
Used in GRACO airless paint sprayers for priming, draining, and switching between spray and prime modes. Essential for maintaining sprayer performance and preventing leaks or priming failures.

Installation Notes:

• Using a genuine GRACO OEM part ensures proper fit, function, and reliability, reducing the risk of leaks or equipment failure.
• Always de-pressurize the gun and hose before switching from Spray to Prime to prevent accidents and ensure safe installation.
• Refer to the equipment manual for specific installation instructions.
• Check the parts breakdown to confirm compatibility before installation.
• Regularly inspect the valve for wear or damage.
• Replace the valve kit if leakage is observed or if the sprayer fails to prime properly.
