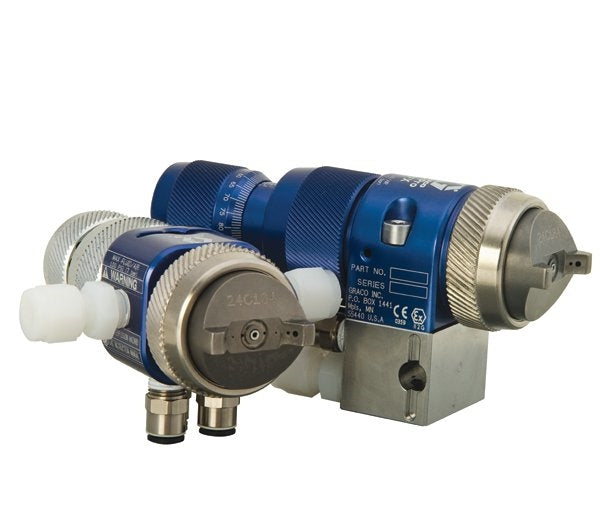

The GRACO 24B867 is an automatic air spray gun designed for precision coating applications. It features a HiTEch spray technology, a 0.039 inch (1.0 mm) nozzle with a carbide tip for durability, and an ultra-precision fluid adjust knob. The gun is constructed with high-wear-resistant materials and is intended for use in automated or robotic finishing systems for consistent, high-quality coatings.

Key Features:

• Automatic air spray gun
• 0.039 inch (1.0 mm) nozzle
• Carbide tip nozzle, stainless steel fluid passages (with manifold), high-wear components
• Maximum working fluid/air pressure: 100 psi (7 bar, 0.7 MPa); Maximum working fluid temperature: 120°F (49°C)
• Designed for use with GRACO automatic spray systems; compatible with various spray technologies (Conventional, HVLP, HiTEch, LVMP, Air Brush)
• Lightest and most compact in its class
• No internal air shutoff mechanism for increased reliability
• Ultra-precision fluid adjustment knob for fine flow control
• Superior spray performance and repeatability
• High wear resistance for abrasive materials
• Stable and repeatable fluid flow

Applications:
Automotive component finishing, backlit displays, cookware, electronics, and other small component finishing applications requiring precision and consistency.

Installation Notes:

• Ensures optimal performance, reliability, and compatibility with GRACO systems.
• Ensure proper mounting for fixed, reciprocating, or robotic applications
• Follow manufacturer guidelines for air and fluid pressure settings
• Regularly inspect and maintain high-wear components for consistent performance
• Use genuine GRACO parts for replacements and maintenance
• Consult the equipment manual for detailed installation and maintenance procedures
• Contact a GRACO specialist for compatibility and troubleshooting
